Icon

3" Suspension System - Stage 5 Kit

2007-2018 Jeep Wrangler JK 4WD RWD
$5,863.45 $6,191.30

Out of Stock

Estimated Delivery in 3-7 business days

Icon

3" Suspension System - Stage 5 Kit

2007-2018 Jeep Wrangler JK 4WD RWD
$5,863.45 $6,191.30

Out of Stock

Estimated Delivery in 3-7 business days

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K220053.0" LiftFront and Rear3" Suspension System - Stage 51

Overview

The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner'emanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today'arket. ICON'eep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON 2.5 Aluminum Series reservoir shocks are included front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. Together the combination of ICON dual rate coils and 2.5 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 4 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. Upgraded tubular steel upper & lower link arms are designed to add performance, strength, and improved alignment range. This ICON 3" JK lift system is designed from the ground up to give the Jeep Wrangler JK'he best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.50 or 4.75" Backspace / 0mm or -6mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #63: 2012-UP JK MODELS REQUIRE THE USE OF ICON PART #22011 EXHAUST EXTENSION SPACER OR AFTERMARKET DRIVESHAFT PART #22014
  • APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
  • APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
  • Ships in Multiple Boxes

Features & Benefits

  • Dual Rate Coil Springs Front and Rear
  • Lifetime Guarantee that Coil Springs Won't Sag
  • Adds 30% More Wheel Travel over Stock
  • Vehicle can be Returned Back to Stock
  • No Welding or Cutting
  • Includes High Performance Rebuildable / Revalvable Reservoir 2.5 Series Shocks w/ CDCV
  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders
  • Out Articulates Most Long Arm Kits of Comparable Height
  • Includes Adjustable Track Bars for Optimized Axle Positioning
  • Pan Rod Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness

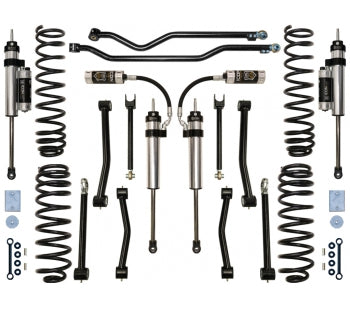

System Components:

  • 21020 (QTY: 1) | 07-18 JK FRONT ADJ TRACK BAR KIT
  • 21025 (QTY: 1) | 07-18 JK REAR ADJ TRACK BAR KIT
  • 21031 (QTY: 1) | 07-18 JK FRONT LOWER FIXED LINK KIT
  • 21036 (QTY: 1) | 07-18 JK FRONT UPPER ADJ LINK KIT
  • 21041 (QTY: 1) | 07-18 JK REAR LOWER ADJ LINK KIT
  • 21046 (QTY: 1) | 07-18 JK REAR UPPER FIXED LINK KIT
  • 22010 (QTY: 1) | 07-18 JK FRONT 3" DUAL RATE SPRING KIT
  • 22015 (QTY: 1) | 07-18 JK REAR 2" DUAL RATE SPRING KIT
  • 22040 (QTY: 1) | 07-18 JK 3" FRONT/REAR BOX KIT
  • 27725CP (QTY: 1) | 07-18 JK 3" REAR 2.5 VS PB CDCV PAIR
  • 27820CP (QTY: 1) | 07-18 JK 3" FRONT 2.5 VS RR CDCV PAIR

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2018JeepWrangler JKRWD, 4WD3.0"
2017JeepWrangler JKRWD, 4WD3.0"
2016JeepWrangler JKRWD, 4WD3.0"
2015JeepWrangler JKRWD, 4WD3.0"
2014JeepWrangler JKRWD, 4WD3.0"
2013JeepWrangler JKRWD, 4WD3.0"
2012JeepWrangler JKRWD, 4WD3.0"
2011JeepWrangler JKRWD, 4WD3.0"
2010JeepWrangler JKRWD, 4WD3.0"
2009JeepWrangler JKRWD, 4WD3.0"
2008JeepWrangler JKRWD, 4WD3.0"
2007JeepWrangler JKRWD, 4WD3.0"
