4.5" Suspension System - Stage 2 Kit

2007-2018 Jeep Wrangler JK 4WD RWD
$4,212.68 Sale
Out of Stock
Icon

4.5" Suspension System - Stage 2 Kit

2007-2018 Jeep Wrangler JK 4WD RWD
$4,212.68 Sale
Out of Stock

Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K240024.5" LiftFront and Rear4.5" Suspension System - Stage 21

Overview

ICON's 2.5" Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, ICON-equipped JK'an take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. One of the major benefits of the ICON 4.5" JK system (or any ICON system) is that they are comprehensive suspension solutions, not just "lift kits". As a complete manufacturer ICON is able to engineer & create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK.

The ICON Stage 2 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.0 Aluminum Series remote reservoir shocks. Tested and tuned, the ICON JK Stage 2 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. Adding the remote reservoirs to the 2.0 shocks keeps them at a cooler operating temperature during heavy use for more consistent shock damping and overall performance. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.50" or 4.75" BS / -6mm or 0mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION
  • APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
  • APPLICATION NOTE #80: FRONT DRIVE SHAFT REQUIRED FOR PROPER FRONT DRIVELINE CLEARANCE (ICON PART #22014 [12-UP] / #22016 [07-11]
  • APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
  • Ships In Multiple Boxes

Features & Benefits

  • Dual-rate coil springs front and rear guaranteed never to sag
  • High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
  • Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
  • All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
  • Includes high-performance rebuildable and revalvable remote reservoir 2.0 Aluminum Series shocks
  • Increased wheel travel and articulation over stock
  • No welding or cutting required
  • 100% returnable to stock

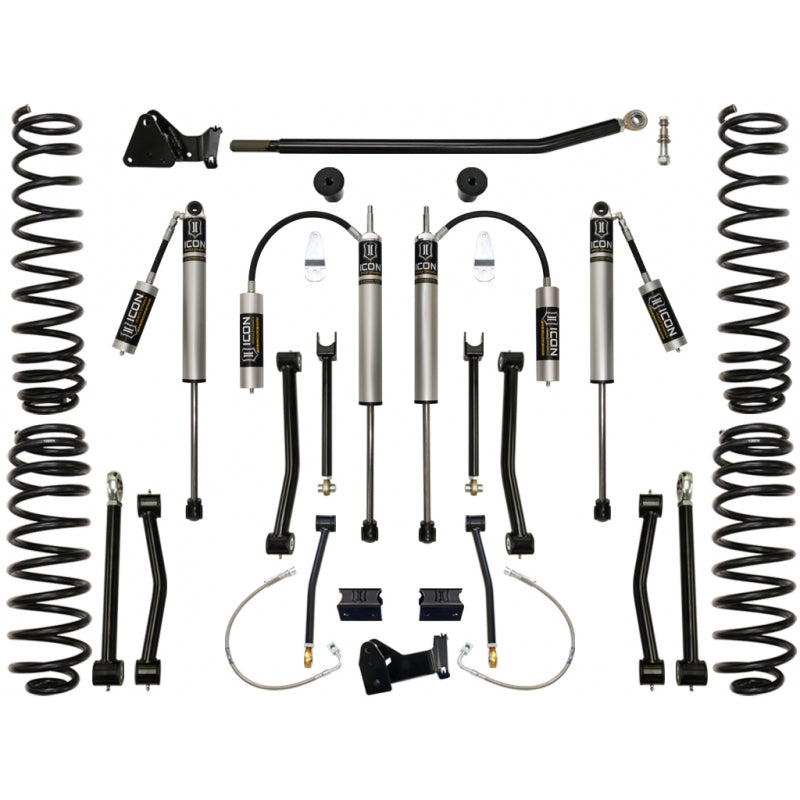

System Components:

  • 21000 (QTY: 1) | 07-18 JK REAR 4.5" BOX KIT
  • 21010 (QTY: 1) | 07-18 JK FRONT 4.5" BOX KIT
  • 21031 (QTY: 1) | 07-18 JK FRONT LOWER FIXED LINK KIT
  • 21036 (QTY: 1) | 07-18 JK FRONT UPPER ADJ LINK KIT
  • 21041 (QTY: 1) | 07-18 JK REAR LOWER ADJ LINK KIT
  • 21046 (QTY: 1) | 07-18 JK REAR UPPER FIXED LINK KIT
  • 24010 (QTY: 1) | 07-18 JK FRONT 4.5" DUAL-RATE SPRING KIT
  • 24015 (QTY: 1) | 07-18 JK REAR 4.5" DUAL- RATE SPRING KIT
  • 26517R (QTY: 2) | 07-18 JK 4.5" FRONT 2.0 VS RR
  • 26518R (QTY: 2) | 07-18 JK 4.5" REAR 2.0 VS RR

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2018JeepWrangler JKRWD, 4WD4.5"
2017JeepWrangler JKRWD, 4WD4.5"
2016JeepWrangler JKRWD, 4WD4.5"
2015JeepWrangler JKRWD, 4WD4.5"
2014JeepWrangler JKRWD, 4WD4.5"
2013JeepWrangler JKRWD, 4WD4.5"
2012JeepWrangler JKRWD, 4WD4.5"
2011JeepWrangler JKRWD, 4WD4.5"
2010JeepWrangler JKRWD, 4WD4.5"
2009JeepWrangler JKRWD, 4WD4.5"
2008JeepWrangler JKRWD, 4WD4.5"
2007JeepWrangler JKRWD, 4WD4.5"
